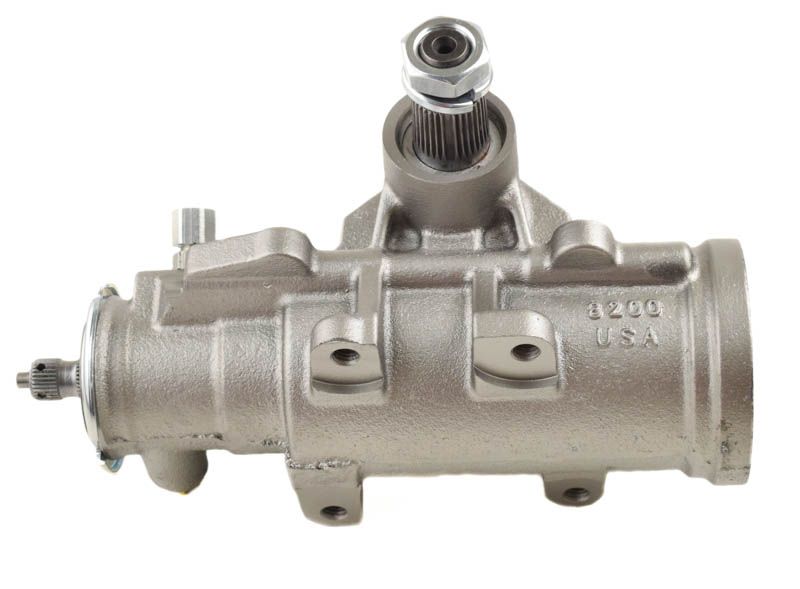

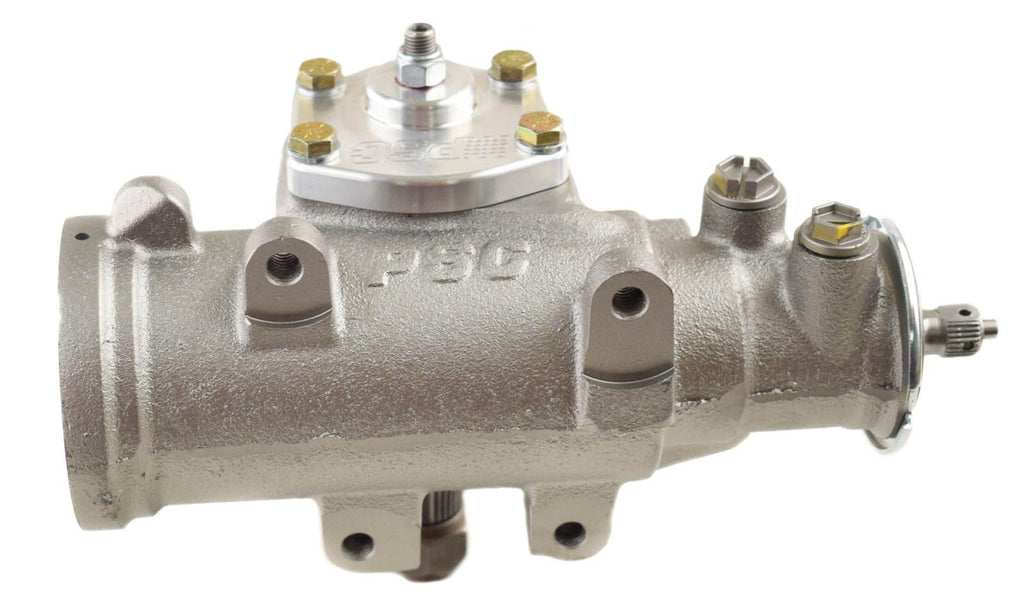

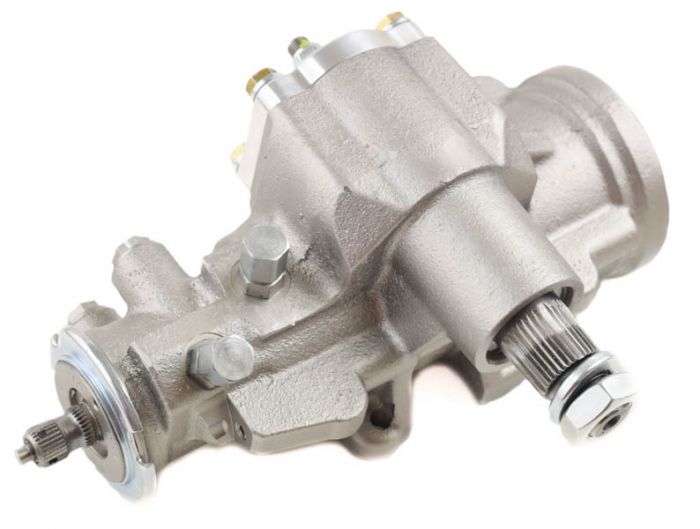

PSC Motorsports Big Bore XD steering box for 1980 to 1986 JeepCJ5/CJ7/CJ8 applications. Drilled and tapped for hydro assist.
Larger Piston Diameter delivers Increased Torque Output for Upgraded Tire Sizes and Locking Differentials
Billet Aluminum Top and End Covers
Turning Ratio: 13-16:1 Variable, 3.3 Turns Lock-To-Lock
Input Shaft: 13/16 Inch - 36 Spline
Port Type: Metric O-Ring
Mounting: Four (4) Bolt, Inside-the-Frame
Threaded Ports are machined directly into the gearbox housing for -6AN fitting connection to PSC Assist Cylinder. Unlike welded fittings, this reduces the risk of a fitting breaking off due to an overextended hose assembly, replacement fittings can easily be serviced if necessary.
