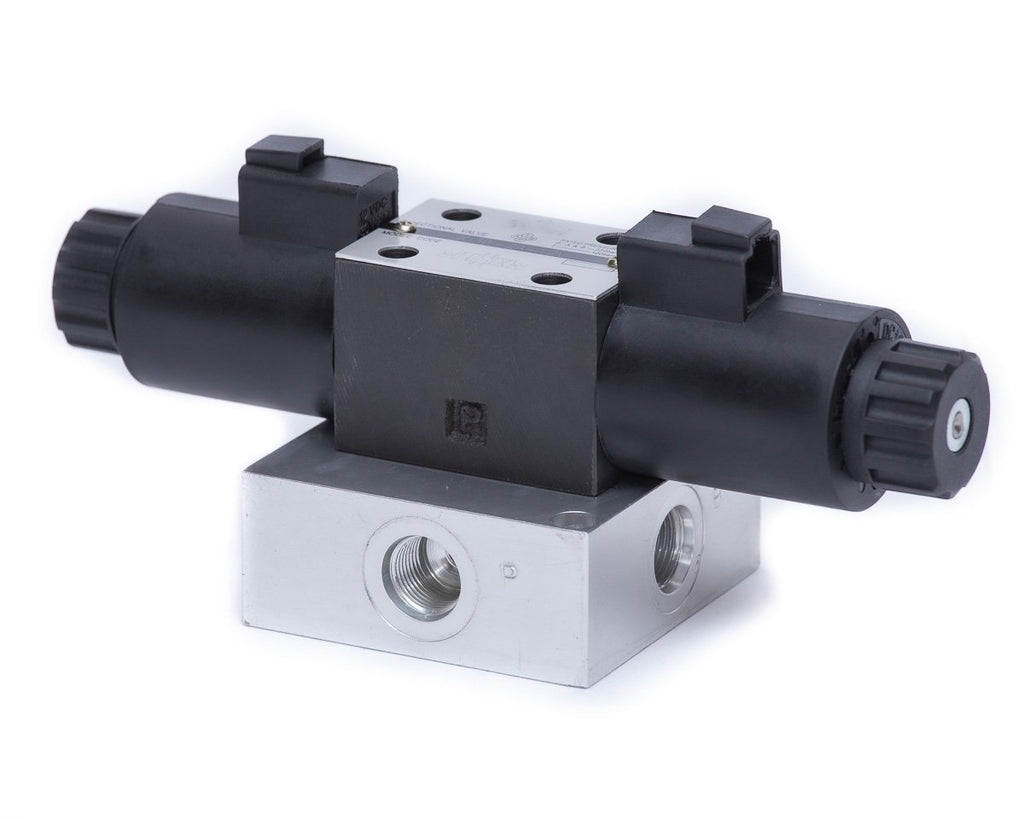

Electric Hydraulic Double Acting Directional Control Valve, 1 Spool, 15 GPM. This is for the VALVE BODY ONLY and does not include a subplate and electrical connectors.
This valve offers remote rear steer control at the flip of a switch. Valve spool is open center with spring return to neutral. A and B ports are closed to tank in neutral position meaning that rear steering stays in place when not being actuated.
Valve Body Features:
- Solid aluminum housing designed for rugged use
- Max Operating Pressure: P = 5080 PSI, T = 3050 PSI, A & B = 5080 PSI
- Flow Rating: 15 GPM
- Manifold/subplate not included
Solenoid Specifications:
- Nominal Voltage Tolerance +/- 10%
- Power Rating: 37 Watts
- Amps: 3.08
- 100% Duty Cycle
- 2-pin Deutsch style electrical connectors not included (2 required)
