The Radial Dynamics EV Power Steering Pump Kit is a unique patent pending system that provides the ultimate hydraulic power steering option for electric vehicles, offering unmatched power output and duty cycle while minimizing energy waste and extending driving range through the use of intelligent power-on-demand controls.

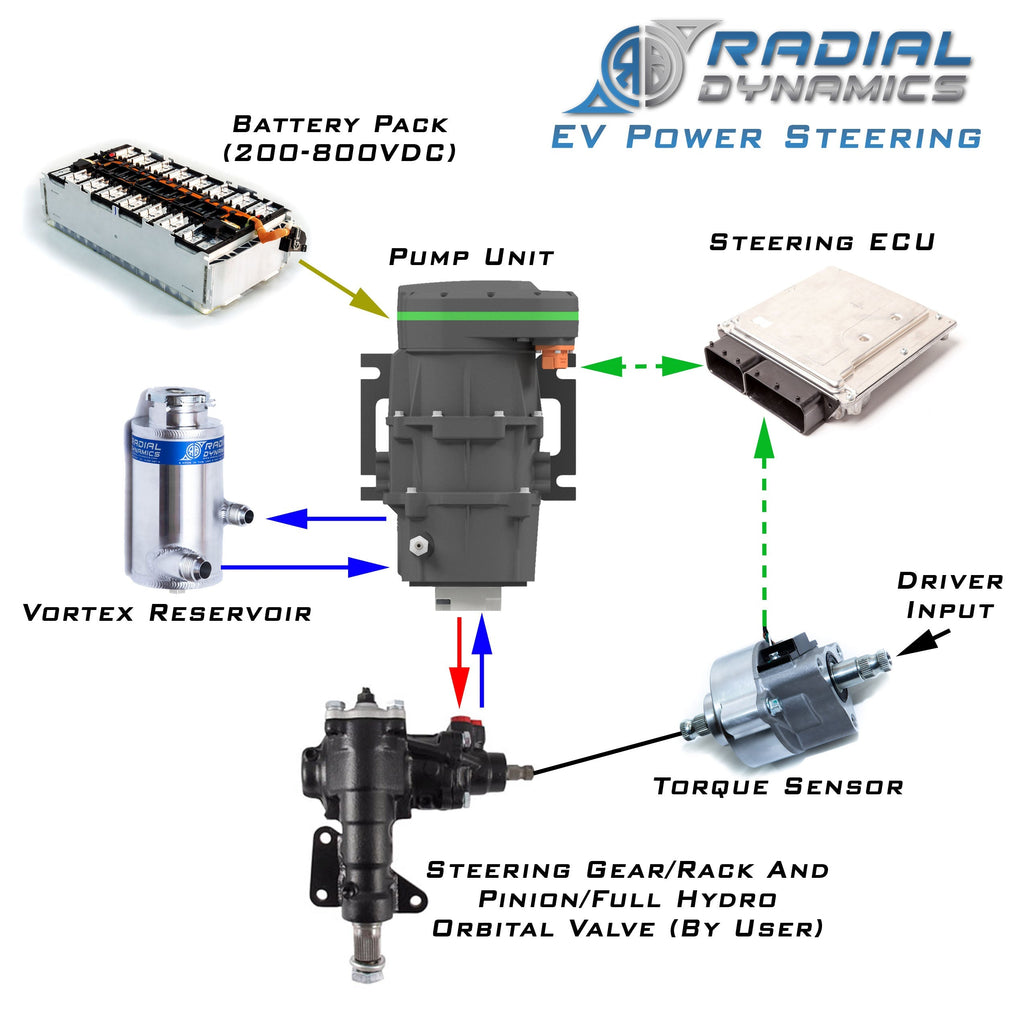

The high voltage electro-hydraulic pump unit and control system provides hydraulic fluid power to any traditional steering equipment including steering boxes, rack and pinions, and even full hydro orbital valves. Auxiliary hydraulic functions such as rear steer and hydraulic winches are also supported through the addition of optional electrical solenoid control valves.

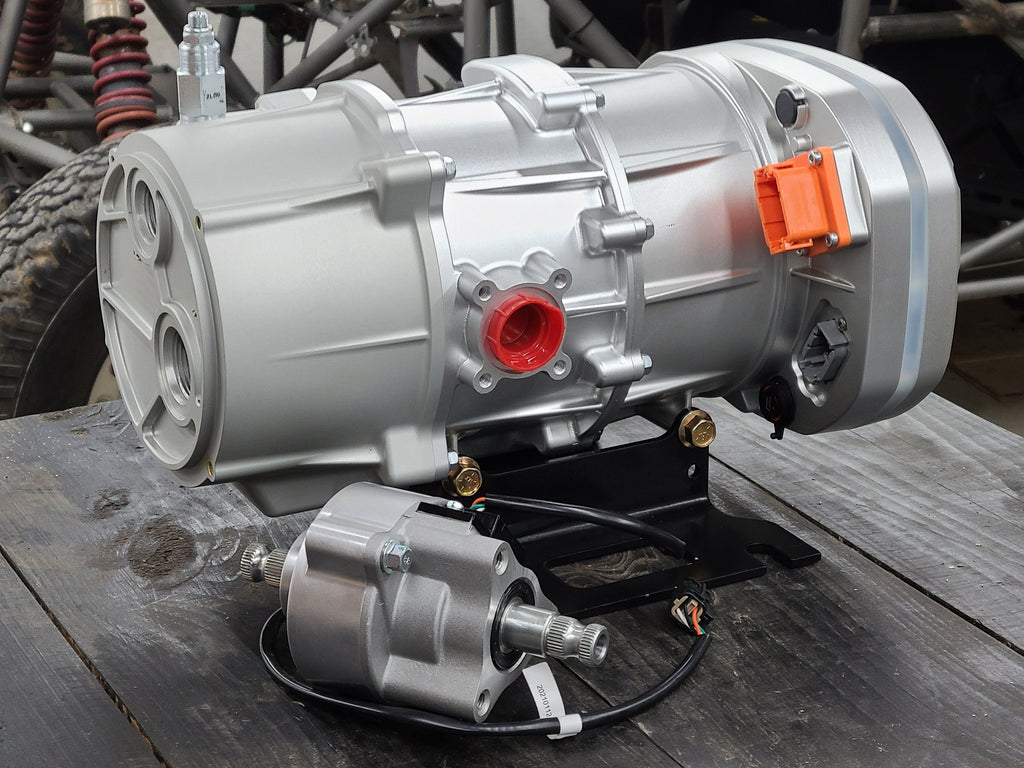

*This kit includes the high voltage electro-hydraulic pump unit, steering column torque sensor, electrical controls hardware, and wiring only. Reservoirs, hydraulic control valves, filters, and other plumbing hardware sold separately.
Features:

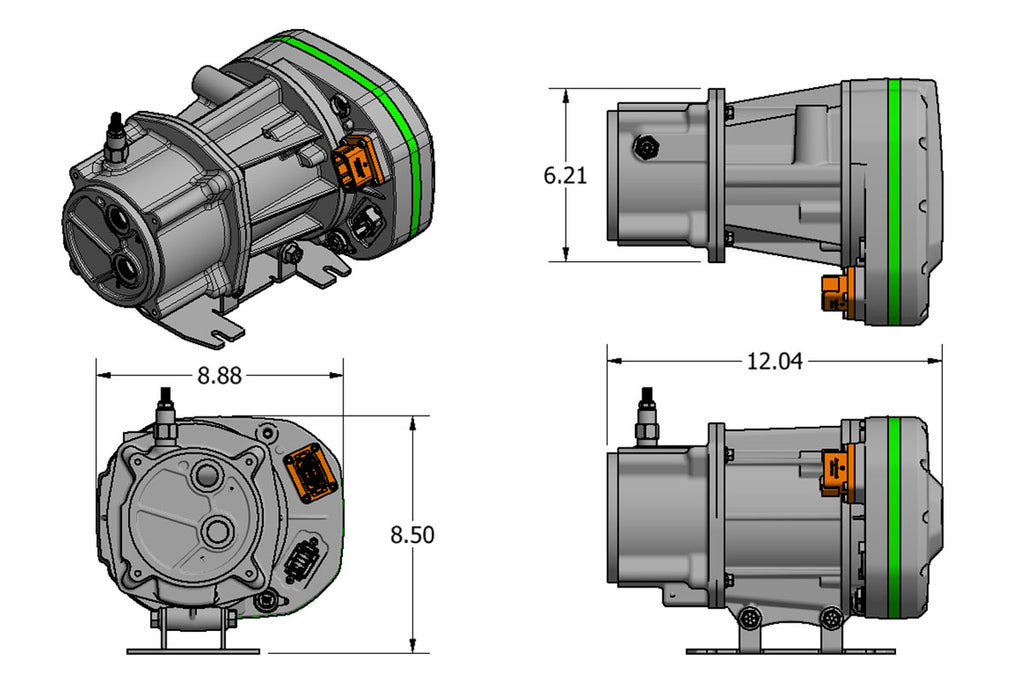

- Terzo EHSU smart high voltage electro-hydraulic pump unit, includes:
- 4cc fixed displacement helical gear pump.
- 2.5 kW (3.4 HP) variable speed permanent magnet motor, 650VDC nominal voltage (500-800VDC operating range).
- Onboard motor controls, inverter, diagnostics, and LED status light ring.
- Discharge pressure sensor (digital pressure limiting).
- Electronics and fluid temperature monitoring.
- Integrated cooling circuit which uses returning steering fluid to cool motor and electronics.
- CAN / J1939 communication
- HVIL and E-stop connection
- Pressure relief valve
- IP6K9K rated
- Radial Dynamics master steering control module with CAN communication to command on-demand pump operation based on feedback from torque sensor and/or auxiliary control valves.
- High voltage shielded power cable, 10 ft. (3m) length.
- Low voltage/communication wiring harness.
- Optional: Steering column torque sensor (for variable speed on-demand pump operation).
If you are considering an Electric Vehicle build, contact Radial Dynamics to find out how we can help you get unmatched power and efficiency out of your driving experience.
