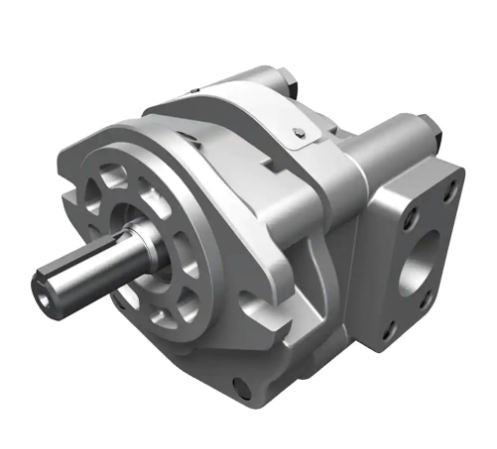

Parker P16 series hydraulic gear pump for monster truck steering applications.
Features:
- Durable three-piece construction with aluminum end covers and iron body
- Journal bearings and balanced pressure plates for long life
- Displacement: 0.88 cu.in. (14.3cc)/rev
- Max pressure: 3000 PSI
- Mounting flange: SAE A 2-bolt type
- Rotation: Counterclockwise (when viewed from driveshaft end)
- Shaft: 3/4" straight shaft with 3/16" keyway
- Side ports
- Inlet port: -20 ORB (SAE)
- Outlet port: -12 ORB (SAE)
